Folded tissue systems

Control the fold. Protect the stack.

Facial tissue and hand towel lines begin with the fold, sheet and pack format. DeChangYu's CJ-C and CJN families cover interfolding, embossing, web-tension control, cutting and downstream packing.

Discuss a folded lineView catalogue data
DeChangYu folded tissue production line
Facial tissuePull-out tissueN-fold hand towelFolded kitchen towel
01

A stable stack starts upstream.

Paper weight, ply count and unwind control shape the fold before the product reaches cutting and packaging.

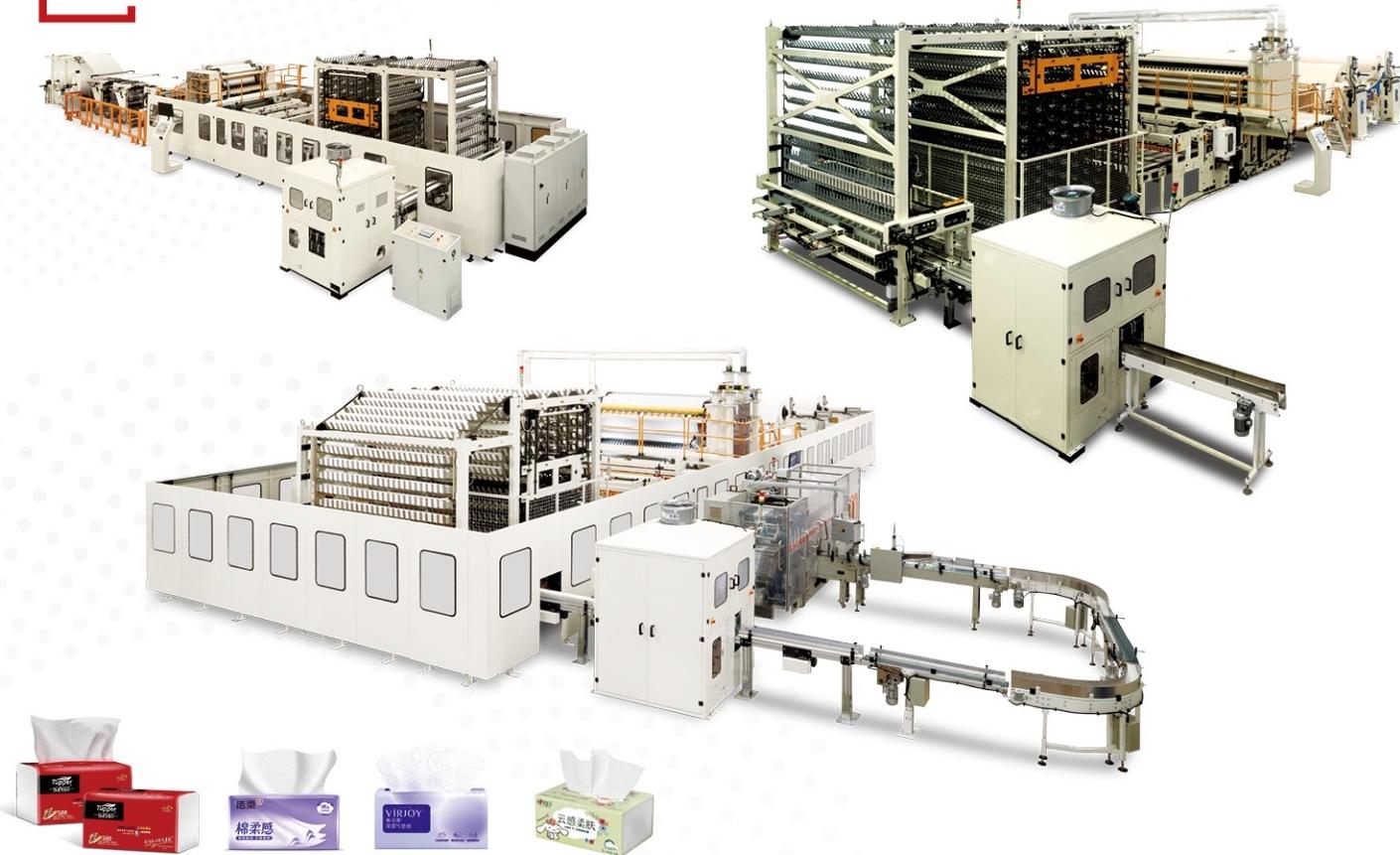

CJ-C folded tissue line

CJ-C / CJN line scope

Web handling, embossing and folding work as one process.

  • 01Shafted or shaftless unwind configurations
  • 02Independent pneumatic web-tension control
  • 03Edge embossing, lamination and side trimming options
  • 04Cutting, wrapping, bundling and cartoning integration
02

Catalogue data by model family.

The values below are attached to the named interfolder. A project quote confirms the final configuration and operating conditions.

Facial tissue reference

CJ-C-1500 / 2050 / 2950 / 3700

Jumbo roll width
1500 / 2050 / 2950 / 3700 mm
Production speed
0-1700 sheets/min; 13-15 logs/min
Facial tissue basis weight
2-3 ply: 11-18 g/m² per ply; 3-5 ply: 11-15 g/m² per ply
Log height
50-500 mm before pressing; 40-300 mm after pressing
Backstand
2-4 plies, shafted or shaftless

Hand towel reference

CJN-C interfolder

Jumbo roll width
1500 / 2100 mm
Production speed
650-800 pumps/min, or 7 logs/min
Paper range
2 ply: 17-22 g/m² per ply; single ply: 30-42 g/m²
Log height
100-350 mm
Printing option
1-2 color aniline ink printing
03

Choose the line from the pack backwards.

The pull direction, folded sheet, stack height and wrapping format determine the modules that follow the interfolder.

Facial tissue

Multi-ply pull-out tissue with embossing, stack handling and downstream bag or carton packing.

Hand towel

N-fold hand towels with optional paper wrapping, log cutting, single packs and cartons.

Bottom-pull formats

CJ-C-A configurations cover bottom-pull facial tissue with half-fold and turnover units where the pack format calls for them.

Start with the folded sheet and pack.

Send the paper, ply count, fold, sheet size, stack height and target pack. We can then narrow the interfolder and downstream line.

Send project brief
